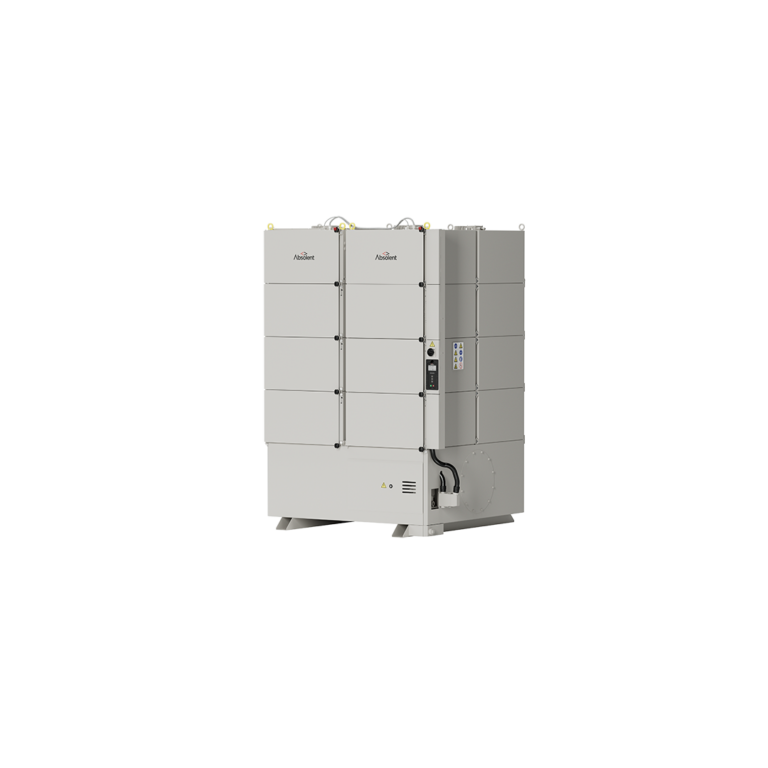

A•erity60-20
A•erity60-20 is a powerful filter unit for cleaning polluted air in industrial operations, guaranteeing clean air for at least 8,760 operating hours. Advanced filtration technology minimizes unplanned downtime, allowing you to focus on your business. A•erity60-20 is built on carefully tested technology with solid know-how and can be easily integrated into production.
Equipped with IE5-rated EC motor for optimized energy consumption and safer operation
Long service intervals thanks to EcoDrive® and Catch&Release®
8760 hours of maintenance-free operation
IoT for optimized performance and planned maintenance
A•erity60-20
| Technical Information | Metric | Imperial |
|---|---|---|
| Application | Machining, grinding, MQL | Machining, grinding, MQL |
| Nominal airflow | 6000 m3/h | 3531 cfm |
| Energy class | 20 mg/m3 | 20 mg/m3 |
| Energiklass | IE5 | IE5 |
| Fan motor type | EC | EC |
| Number of fans | 3 | 3 |
| Sound level 75% (normal operation) | 69db(A) | 69db(A) |
| Sound level 100% | 75db(A) | 75db(A) |
| Number of filter stages per filter unit | 3 | 3 |
| Number of filter cassettes per filter unit | 9 | 9 |
| Prefilter | Yes, as option | Yes, as option |
| Width | 1621 mm | 63,82 in |
| Height | 2306 mm | 90,76 in |
| Depth | 1490 mm | 58,66 in |
| Weight with empty filter cassettes | 680 kg | 1499 Ibs |
| Weight with full filter cassettes | 725 kg | 1598 lb |
| Weight without filter cassettes | 539 kg | 1188 lb |
