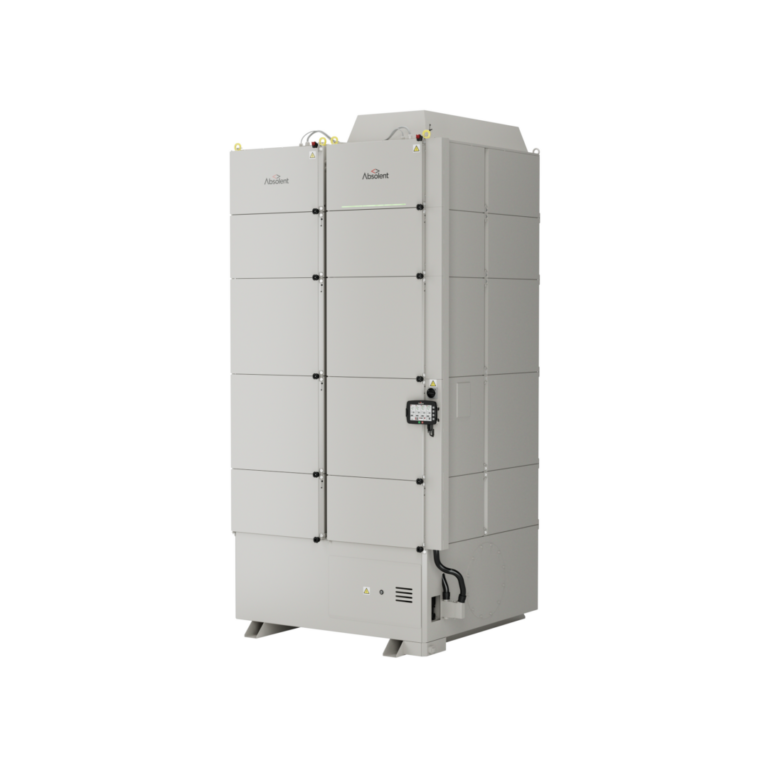

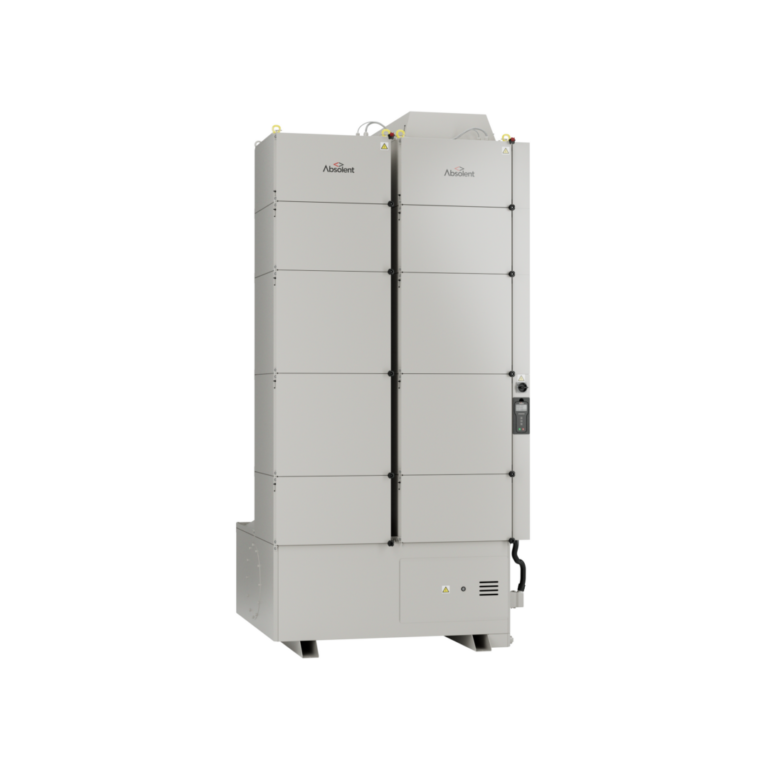

AE60-150 Oil Smoke Filter
AE60-150 is a high-performance filter unit engineered for demanding processes with heavy oil smoke and high particle loads. Its tilted four-stage filter bed efficiently removes 99.97% of airborne particles. Catch & Release technology automatically drains oil to extend filter life, while EcoDrive® optimizes airflow to lower energy costs. Quiet, reliable, and easy to service, AE60-150 keeps production running clean and uninterrupted.
AE60-150 is a high-performance oil smoke filter unit, designed with a tilted 4 stage filter bed technology to ensure efficient drainage, extended filter life, and optimized airflow. The innovative tilted design enhances usable surface area while minimizing footprint, delivering unmatched filtration power across various airflow demands.
AE60-150 offers additional customization options to enhance efficiency and reliability, including:
- Prefilters for sticky particles, optimizing filtration performance
- Airflow measurement for precise system monitoring
- Remote IoT monitoring to enable predictive maintenance, faster diagnostics, and lower maintenance costs
Built for continuous operation and available with IP55 protection, AE60-150 ensures safe and dependable performance whether installed indoors or outdoors.
Unmatched filtration power density - delivering high performance in a compact footprint.
Tilted Multi-Stage Filter Bed – efficiently captures oil smoke and extends filter life.
Fast, predictable maintenance - with IoT monitoring and more convienient size of filter cassettes.
EcoDrive™ Technology - dynamically adapts airflow to demand, optimizing energy efficiency and reducing costs.
The unit supports:
- Post-run settings for optimized operation
- Multi-machine signal control for seamless integration
- Optional vibration monitoring for added reliability
Each unit is equipped with convienint sized filter cassettes, designed for manual handling, eliminating the need for tools or lifting equipment.
| Technical Information | Metric | Imperial |
|---|---|---|
| Application | Machining, grinding, die casting, forming/pressing | Machining, grinding, die casting, forming/pressing |
| Nominal airflow | 6000 m3/h | 3532 cfm |
| Particle load | 150 mg/m3 | 150 mg/m3 |
| Fan energy class | IE5 | IE5 |
| Fan motor type | EC | EC |
| No. fans | 3 | 3 |
| Sound level 75% (normal operation) | 67,5 dB(A) | 67,5 dB(A) |
| Sound level 100% | 70,5 dB(A) | 70,5 dB(A) |
| No. filter cassettes | 12 | 12 |
| Prefilter | Yes, as option | Yes, as option |
| Height without extension legs | 3240 mm | 127.6 inch |
| Width with accessories/options | 1620 mm | 67.8 inch |
| Depth | 1468 mm | 57.8 in |
| Inlet Duct Ø | 400 mm | 15.8 |
| Weight, empty cassettes | 950 kg | 2094.4 lbs |
| Weight, full cassettes | 1085 kg | 2392 lbs |
| Weight, without cassettes |
