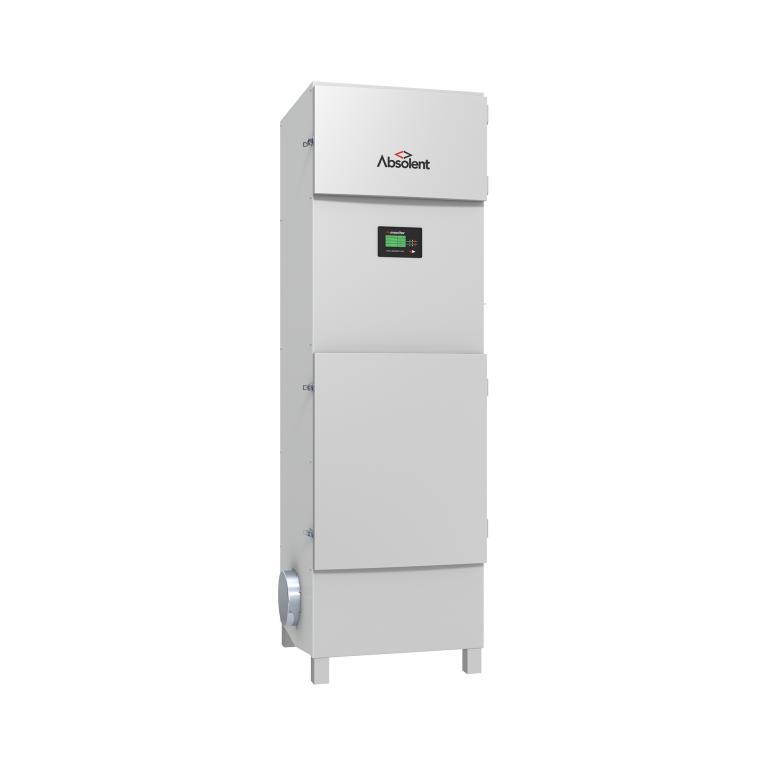

Absolent’s A•mist10C is extremely effective for cleaning oil mist. Choose between three different exhaust levels depending on your local particle emission regulations or company policy. Take total control of your working environment with A•mist10C, the first oil mist filter with an electronic LCD monitor!
0.4 OIL BARRELS
No more slippery floors and dangerous mist. Only 0.8 teaspoon per year remains, And clean air!
CLEAN AIR ALWAYS
The HEPA H13 filter guarantees clean air – always. Only the best is good enough!
8760 RUNNING HOURS
Four filter stages capture all particles – giving you 1 year of maintenance free operation.
The A•mist10C filter unit is available with either a single or two filtration stages. Simply choose the filtration efficiency you want to achieve.
Designed for flexibility
The A•mist10C has a compact design with multiple attachment points which offer great mounting flexibility: on the machine, hung from the ceiling, put on a stand. Service is easy – just open the front cover like a bonnet. If operation conditions change, a HEPA filter can be added later on.
The filtering process occurs in either one or two stages. The first stage consists of the self-draining Absolent filter, in which up to 95% of the oil mist is collected. If you choose two-stage filtration, the unit includes a H13 HEPA filter rated at 99.97% @ mpps (≈ 0.14 microns). The status of the filter cassettes are monitored by an electronic manometer, which monitors and indicates when a filter needs to be changed or washed. The electronic manometer can also provide an external alarm signal to the machine operator or to a central service desk.
Thanks to the continuous draining of the filter cassettes, the unit can be operated without interruptions. The return oil is collected at the bottom of the filter for recycling or waste. Of course you have a two year machine warranty for the A•mist10C . This excludes filter cassettes as they are consumables.
Absolent filter units usually run for at least one year without requiring filter change. In the majority of applications, Absolent filter cassettes are washable*). The result is an extremely cost efficient oil mist filtration, creating a clean air stream that can be returned into the plant. Subsequently, heating or cooling energy is preserved and the general HVAC balance in the plant is easier maintained.
|Height||807 mm||31.8 in|
|Width , without HEPA||1077 mm||42.4 in|
|Width , with HEPA||1190 mm||46.9 in|
|Depth||684 mm||25.5 in|
|Inlet duct Ø||160 mm*||6.3 in*|
|Weight, without HEPA||110 kg||243 lbs|
|Weight, with HEPA||130 kg||287 lbs|
|Motor output||0,55 kW||0.85 hp|
|Max. permissible air volume||1000 m³/h||590 cfm|
|Typical values for this filter:|
|Oil quantity in||0.4 Oil Barrels/yr||0.4 Oil Barrels/yr|
|Oil quantity out||0.8 tsp/yr||0.8 tsp/yr|
*Inlet duct not included for the US market.
